Athenars hyper-converged cluster sub-system

Athenars has decided to utilise Proxmox and Ceph in our technology stack. To better understand how our decision fits into our overall design, please see our other posts on our system requirements and considered sub-systems. The sub-systems post contains a lot of relevant framing points around not only the sub-systems as a whole, but also specifically about the hyper-converged cluster sub-system.

This post will not be a blow-by-blow feature comparison. We will however walk through and explain our reasoning for choosing Proxmox and Ceph over the other options. A lot of this won't be surprising when considering our system requirements provided in the previous posts.

First, here are the main options that were considered.

• Proxmox and Ceph.
• TrueNAS Scale.
• Unraid.
• XPC-ng.
• VirtualBox.
• Synology VMM.
• VMware esxi.

Main feature requirements

We have specific wants and needs for this sub-system. In the end, our decision to use Proxmox was fairly easy once we laid things out. The main features we wanted in our hyper-converged cluster sub-system are as follows:

• we would prefer to use open source software.
• we would prefer a mature platform.
• we want a solid platform for virtual machines.
• we want a solid platform for containers.
• we want a platform that can be clustered.
• we want a platform that can be deployed highly available.
• we want a well integrated shared storage solution.
• we want good backup options.
• we want a system built on Linux.
• we want to be able to access the data (metrics and logs) that is available in the cluster.
• we want to be able to get the data out of our cluster for longer term storage and analysis.
• we want a convenient graphical user interface.
• we want open licenses.
• we want hardware freedom.
• there should be broad hardware support.
• the system should not require a cloud account.
• functionality should not be locked behind additional licenses.
• it should be user-friendly.
• there should be a community around it.
• there should be good documentation.
• we would prefer to be able to choose from file, block and object storage.
• we would prefer a range of file system options.
• we would prefer flexible virtual networking options.
• there should be no major concern around the long-term development of the chosen platform.

What isn't critical in this Athenars sub-system are more enterprise features like multi-site management. These are not required at all for our purposes. Athenars does not intend on actively managing systems as the intent is that people will maintain their own systems.

The best fit for our wants and needs

For our requirements, by far, the most suitable platform is Proxmox. It basically ticks all the boxes.

There are other decent options. There are actually quite a lot of available options. However some have small communities around them, poor or little documentation or their ongoing long-term use is doubtful. The proprietary options are not good options due to having so many limitations around how they can be used. For Athenars needs, Proxmox (especially with Ceph), is our clear choice.

We think the above listed features will provide a solid hyper-converged, highly-available cluster capability. We should probably now talk a little bit more about the specific design thinking and intended configuration for our Proxmox / Ceph hyper-converged highly-available cluster. Specific implementation and configuration details will be explored in more detail in future posts.

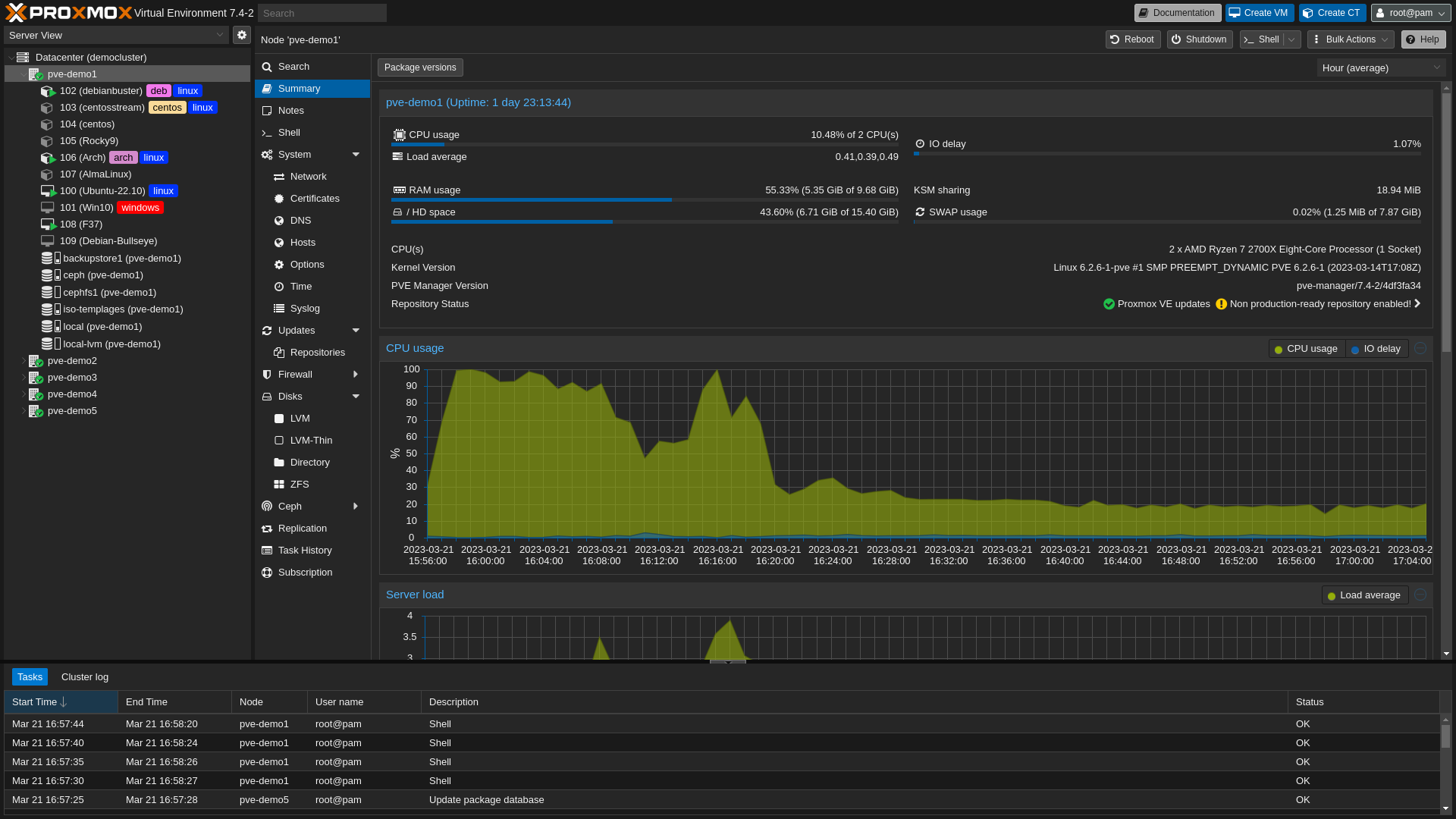

For those who like video, here is a good introduction to Proxmox.

The design of the cluster

Any Athenars cluster will have three servers at a minimum, clustered together via Proxmox. A highly-available cluster means that even if an entire machine fails, we still have all of our services and data available and online. This means that even when we are not attending the cluster, if one machine fails, the system will automatically replicate and start the VMs and CTs that were on the failed node to one of the remaining active nodes. Especially in the case for VMs, even if a user was actively using the services from a VM, like perhaps media playback, they would not even notice this occurred.

This is an important step up from having only single (or maybe two) drive failure tolerance within a single machine which is the case for systems like a Network Attached Storage (NAS) device. Having tolerance for an entire machine failing means that any part of a machine can fail and we still lose no services or data. This means we can have a CPU fail, memory stick fail, motherboard fail, power supply or cabling fail, or anything else.

Proxmox also has great documentation for the virtualisation infrastructure, as well as offers performance advice and benchmarks for using Ceph with Proxmox.

Hardware

Regarding hardware, the servers in the cluster should be as low power and energy efficient as possible, while still having the ability to fit at least one NVME drive and one SSD drive (though preferably more) and also allow for 1 x 25GB/s network interface card (NIC), 1 x 10GB/s NIC and preferably one out of band remote management port. The NVME drive can be small and is for OS storage. The SSDs are the first choice for VMs and CTs. For larger systems, HDDs can still be an option.

The 25GB/s NIC is to allow for network speeds that are close to the read and write speeds of SSDs. This specific network is for Ceph internal private storage networking. The 10GB/s NIC is for connection to end user devices like workstations. 10GB/s networking is more easily obtained, is close to HDD read and write speeds while allowing for better more native feeling remote access, compared with 1GB/s NICs. We note that both 25GB and 10GB is for internal networking only. For most people, 1G speeds is all that is possible for internet / ISP connections.

Typically in hypervisor systems, the amount of memory becomes more of an issue than CPU performance or the number of threads - though not always. For clusters, a minimum RAM per machine should be 16GB. This provides a little under 48GB in total across the cluster which is a good start point. Each node should also have at least 4 cores and 8 threads. Providing 12 cores and 24 threads across the cluster. Typically, the more recent the CPU, the more energy efficient it will be, the more performance it will have, and the more it will cost. While it is less of an issue now, any CPU, and BIOS, should be checked to confirm it supports virtualisation.

Ceph

This three node configuration allows for optimal Cepth deployments as far as is reasonably practical for our use cases. The Ceph shared storage across the cluster can be used by both Virtual Machines (VMs) and LXC Containers (CTs). This shared storage means we can have automatic failover for both VMs and CTs in Proxmox, noting that CTs share the kernel with the host so they are not as quick to transition to another node upon node failure. Because the VMs and CTs use shared storage (Ceph), when a node fails, Ceph will also replicate the data on to the remaining node that doesn't have a copy of it. This means it will continue to be available to the VMs and CTs.

Our cluster configuration with Ceph storage means we don't need to use a NAS for shared storage to allow for high availability. This removes the negative single point of failure in such a setup. However we can now use a NAS for a local backup destination. Even better, we could build a seperate small Proxmox Backup Server (PBS) that is even lower power than our cluster servers that only hosts local backups. Yes, we do still strongly recommend a local backup even though we have highly-available compute and shared storage across nodes. The entire cluster could feasibly be lost, through fire, water or theft, so having a local backup continues to be important - especially for critical data like documentation and family photos and the like.

Proxmox (with Cepth) is our hyper-converged, highly-available, virtualisation and containerisation cluster platform of choice.

We also like that Proxmox has support subscriptions available. It's nice to have a clear way to support the open source project and actually get help if you need it from the ultimate experts in the system.

Conclusion

That concludes our logic and reasoning for selecting Proxmox (with Ceph) as our hyper-converged cluster sub-system for Athenars. It is a mature, actively developed, capable and powerful platform with hardware freedom.
